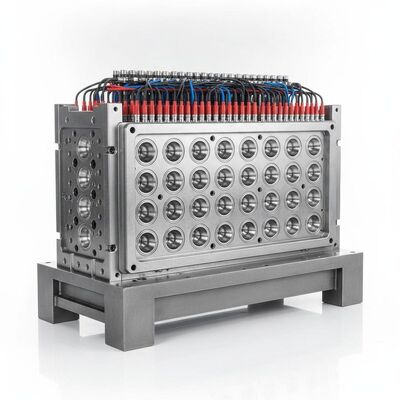

72 Cavity PET Preform Injection Mold with Hot Runner System for PCO 1881/1810 Neck Standard
제품 상세 정보
| 공동 | 32-96 캐비티 | 무게 일관성 | ± 0.1g |
|---|---|---|---|
| 넥 표준 | PCO 1881/1810 | ||
| 강조하다 | 72 Cavity PET Preform Injection Mold,Hot Runner System Preform Mold,PCO 1881/1810 Neck Standard Injection Mold |
||
제품 설명
PET Preform Injection Mold 72 Cavity Hot Runner for Mineral Water CSD Bottle Preform Production
Xiamen Creator Technology Co., Ltd. manufactures high-precision PET preform injection molds with 32 to 96 cavity configurations featuring hot runner systems and optimized cooling for mineral water, CSD (carbonated soft drink), and edible oil bottle preform production. Our molds deliver consistent preform weight and neck finish quality for stretch blow molding operations.
Key Features & Advantages
- 32 to 96 cavity PET preform injection molds
- Hot runner system with individual nozzle temperature control
- Precision neck finish: PCO 1881, PCO 1810, 29/25, 30/25
- Optimized cooling for fast cycle times and uniform crystallinity
- Consistent preform weight: ±0.1g across all cavities
- Interchangeable neck inserts for production flexibility
Technical Specifications
| Product | PET Preform Injection Mold |
| Cavity | 32 / 48 / 72 / 96 Cavity |
| Neck Types | PCO 1881, PCO 1810, 29/25, 30/25, 38mm |
| Preform Weight | 10g - 80g |
| Cycle Time | 12-25 seconds depending on weight |
| Runner | Hot Runner Valve Gate |
| Cooling | Optimized Post-Mold Cooling Station |
| Material | PET (Bottle Grade) |
Manufacturing Excellence
Our PET preform mold manufacturing combines precision machining with advanced hot runner integration. Each mold features individual nozzle temperature control for uniform melt delivery across all cavities, achieving preform weight consistency of ±0.1g. Our molds are compatible with major injection molding machine brands (Husky, Netstal, Engel, Haitian) and integrate with post-mold cooling automation.
Frequently Asked Questions
Q: What is the maximum cavity count for PET preform molds?
A: We manufacture PET preform molds up to 96 cavities, suitable for high-volume bottle production lines.
Q: How do you ensure consistent preform weight?
A: We use balanced hot runner systems with individual nozzle temperature control and precision-machined cavity geometry, achieving weight consistency of ±0.1g across all cavities.
Q: What neck finishes do you support?
A: We support PCO 1881, PCO 1810, 29/25, 30/25, 38mm, and custom neck finishes for water, CSD, and edible oil applications.
Q: Are your molds compatible with Husky or Netstal machines?
A: Yes. We design our molds to be compatible with all major PET injection systems including Husky, Netstal, Engel, Haitian, and other brands.
